Coil Coating Repair Kits for Field Application
What we can process

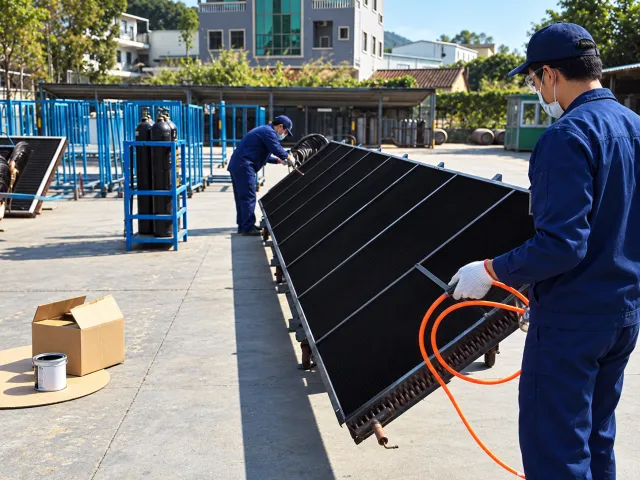

What a field kit is for
- Touch-up of scratches, bent fins and damage found on arrival or after installation.
- Recoating of installed coils that are still sound but were delivered uncoated.
- Maintenance of coated coils after years in service.
What decides the result
Field work depends on cleaning. Salt and corrosion products must come off and the coil must be dry before coating, or the new film traps them against the metal. The application guide covers cleaning, masking, application, cure times and weather limits.
Why PG-S1 is the default
PG-S1 is listed as general cargo on its data sheet, which makes it simple to ship by sea or air, and it cures by ambient moisture where no oven is available. It must be protected from freezing in transit.
Process
01Specify
Equipment, exposure, destination
02Sample
First-article coating for new systems
03Inspect
Incoming check with photo record
04Coat & cure
Dip, spray or flood; cure logged
05QC
Film thickness, coverage, fin bridging, adhesion
06Report & ship
Batch report travels with the goods
Coating options
Selected by site corrosivity. Salt-spray hours from different standards are not compared across systems.
| System | Film thickness | Cure | Best for |
|---|---|---|---|
| PG-S1 Waterborne polysiloxane (sol-gel) | 5–15 μm | Thermal or ambient | New coils before shipment, OEM dip lines |
| PG-S2 Polysiloxane-urethane clearcoat | 5–10 μm | 160 °C / 60 min | Aluminium radiators, bakeable heat exchangers |
| PG-W Waterborne two-component | 5–10 g/m² per side | 80 °C touch-dry | Coil lines, mild coastal and humid sites |
| PG-C Air-dry two-component, chemical-resistant | 20–40 μm | Ambient 72 h | Complete units, chemical and wastewater sites |
Related
Which system is in the kit?
PG-S1 by default, cured by ambient moisture on site. PG-C is supplied where chemical exposure calls for a thicker film; it is solvent-based and expected to ship as dangerous goods.
Can a kit restore a badly corroded coil?
No. A kit protects coils that are still sound and repairs local damage. Coils with loose fins or leaks should be replaced.
Do you apply the kits on site?
No. Kits are supplied to local applicators and maintenance teams, with the application guide.
Tell us the equipment, the site and the destination port. We reply within 24 hours.
